Full Automatically Blushless Motor Full Height Turnstile Gate Single Lane

  • 1
  • 2

Brand Name : Shenzhen DOOR

Model Number : DR.TD.6771A-1

Certification : CE / IS09001

Place of Origin : Shenzhen China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2500 sets/months

Delivery Time : 5-7days

Packaging Details : Plywood case

Product name : Factory Price Automatic Safe Rotation Full Height Turnstile Gate

Material : SUS304 brushed stainless steel

Size : 1580*1180*2310mm

Lane Width : 600mm

Passing Speed : 20-35 personal/min

Mean Cycles Between Failure : 5 million times

IP Rating : IP65

Power supply : AC220V/110V

Warranty : 12 Months

Working Temperature : -25℃-+70℃

Contact Now

Full Automatically Blushless Motor Full Height Turnstile Gate Single Lane

Quick Descirption of Security Gates

Full height turnstiles are the most security and most widely used turnstile for pedestrian access control. This type of gates can solve tailgating which allow access to one person at a time by locking after a single person makes entry into the system. These access control turnstiles are designed for indoor and outdoor.

Specification of Full Height Turnstiles

Material 1.5mm SUS 304 stainless steel
Input power AC220V/110V,50/60HZ
Motor Solenoid
Work temperature -20℃ ~ 70℃
Rated power Single core100W,double core 200W
Work environment indoor / outdoor available
Passage speed 20-35person/min
Communication Interface RS485, open/close signal(relay), dry contact
MTBF 5 million cycles
Pass Width 600mm
Passage direction one-directional/Bi-directional
IP level IP65
Applications Stadium, factory, amusement park, government security, public transportation

Features of Full Height Turnstile

  1. Damper buffer device
  2. Standard signal input port, can be connected with most of the access control board, fingerprint device and scanner other equipment;
  3. The turnstile has automatic reset function, if people swipe the authorized card, but don’t pass through within the settled time, it need to swipe card again for entry;
  4. Card-reading Recording function
  5. Automatic opening after emergency fire signal input
  6. Anti following : prevent illegal passing
  7. High light LED indicator , displaying passing status.
  8. Normal open can be also controlled via external button or manual key unlock
  9. Gate will automatically open when power failure(connect 24V battry)

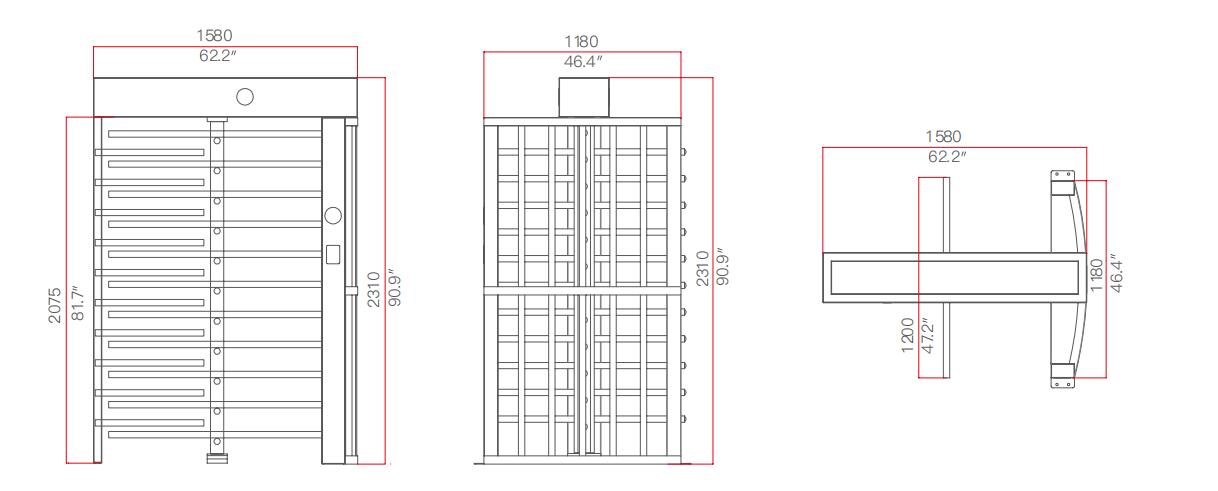

Single Lane Full Height Turnstile Size Diagram

Full Automatically Blushless Motor Full Height Turnstile Gate Single Lane

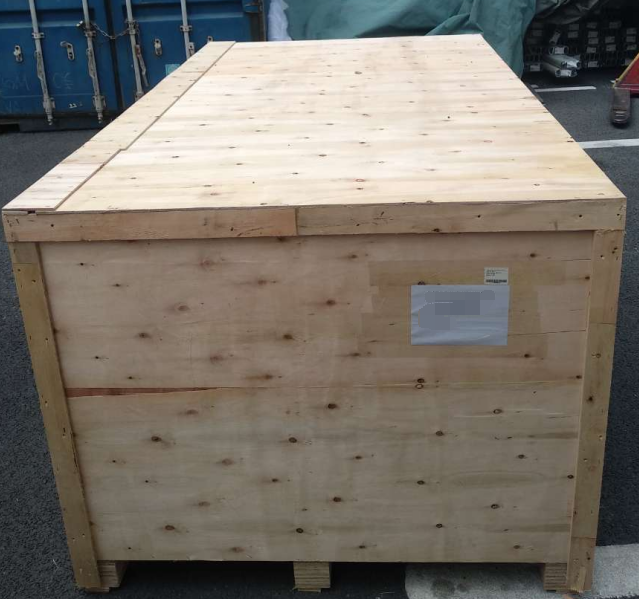

Packing of Single Channel Full Height Turnstile

Full Automatically Blushless Motor Full Height Turnstile Gate Single Lane

G.W. (KG/plywood case) G.W. (KG) MEASUREMENT (CBM)
280 255 2150*1300*1080mm/3.019
